Remote Data Collection - Zebra CS6080

Modified on Fri, 02 Jun 2023 at 02:59 PM

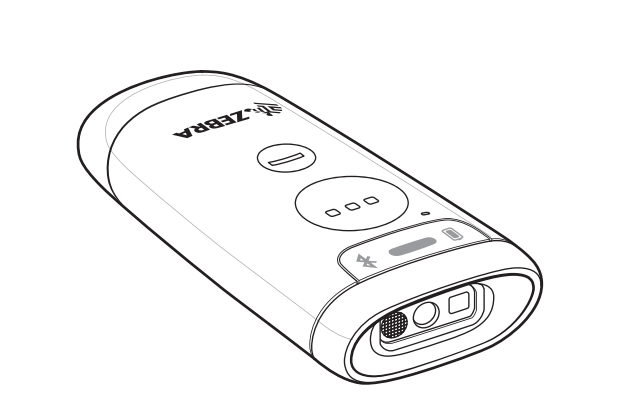

The Zebra CS6080 scanner is configured by scanning various barcodes to program the device.

The following list of barcodes can be printed, or scanned from a computer display

The device quick-start guide can be found: here

Full Reference Guide: Zebra CS6080

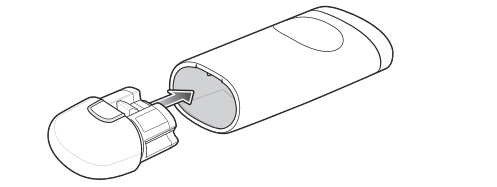

First, follow the quick start guide to install battery into zebra scanner, and plug cradle into a USB port on the workstation using Design Manager.  Its highly recommended to let the unit fully charge if the device is new or battery has fully discharged.




Insert scanner into cradle to pair devices and make sure scanner is charged



Users may find it helpful to print the following barcodes used in configuring the Zebra scanner


Step One: Scan the QR code to configure scanner parameters.  Wait 10 seconds before placing back into cradle.  The bluetooth symbol on the scanner will flash blue to indicate a wireless connection has been made.  Once the scanner has been programmed, you should not need to click this barcode again to reprogram the unit.



Step 3:  Enter batch mode to begin scanning barcodes.  Its required to re-scan the batch mode configuration barcode EVERY time the device has uploaded data and you want to scan a new group of items.














Steps for Remote Data Collection (Physical Count):

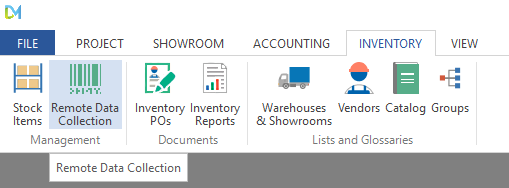

Open Design Manager, click Remote Data Collection:


Click Scanner in the lower-right corner to select the Data Collection Scanner

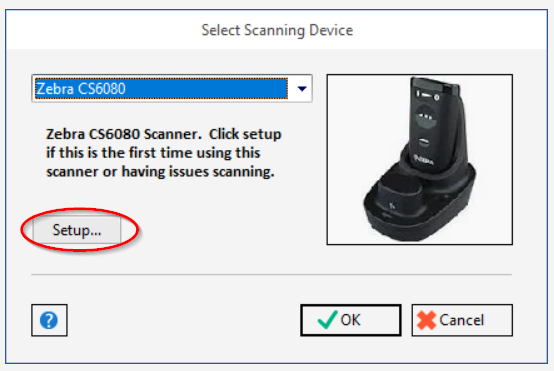

Select Zebra CS6080 from the dropdown list and click Setup

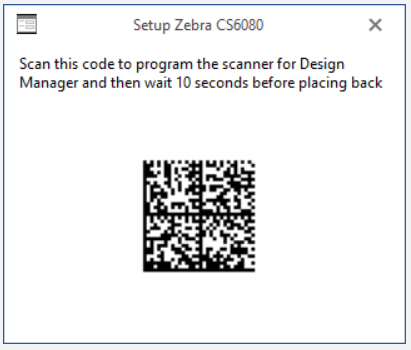

Scan the QR code to configure the scanner.  The scanner will chime to indicate the configuration was successful.  Place the scanner back into the cradle to complete the Bluetooth Pairing.




Scan this barcode to place device into Batch Scanning mode:




You may now scan your barcodes.

Do not return device to cradle until data has been uploaded, or scans can be transmitted incorrectly and lost.


When scanning barcode data is complete, return to Design Manager and click Add.

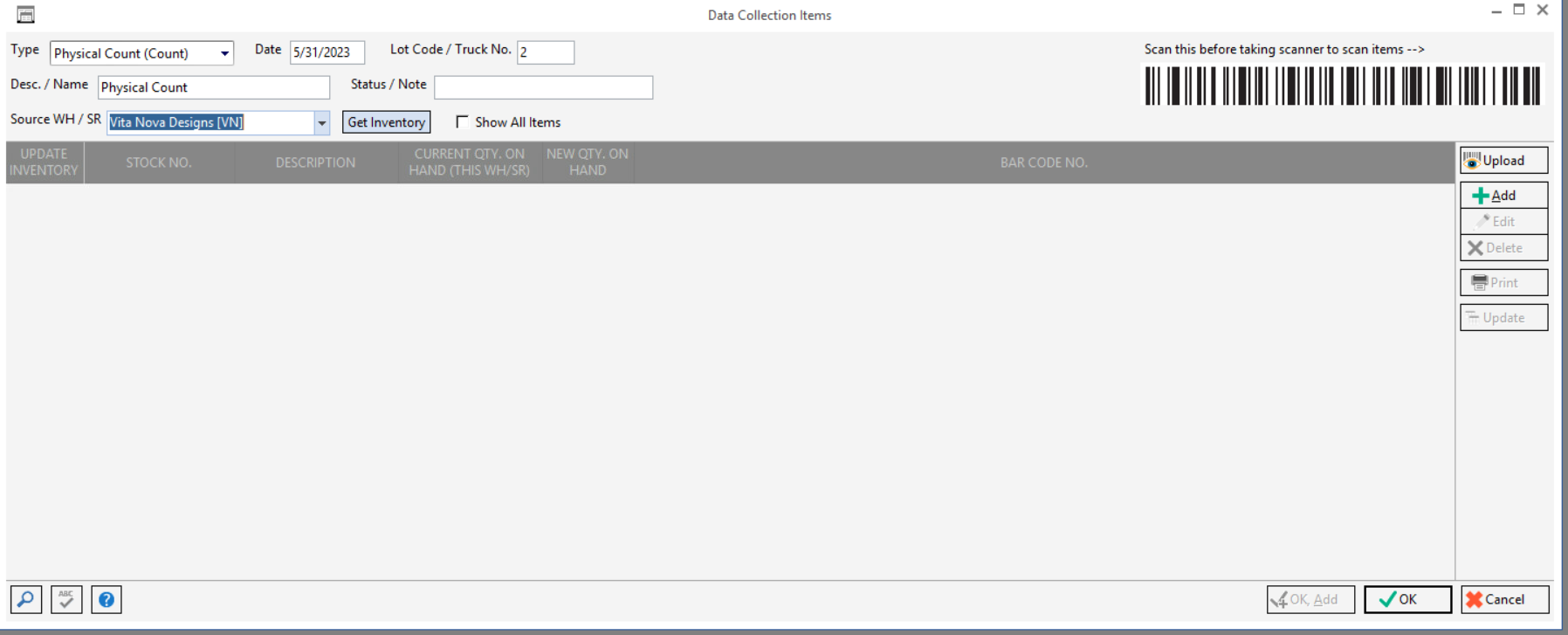

Choose the type of Data Collection, (Physical Count in this example)

Fill in the Lot Code / Truck No

Description / Notes

Source Warehouse

Click Get Inventory

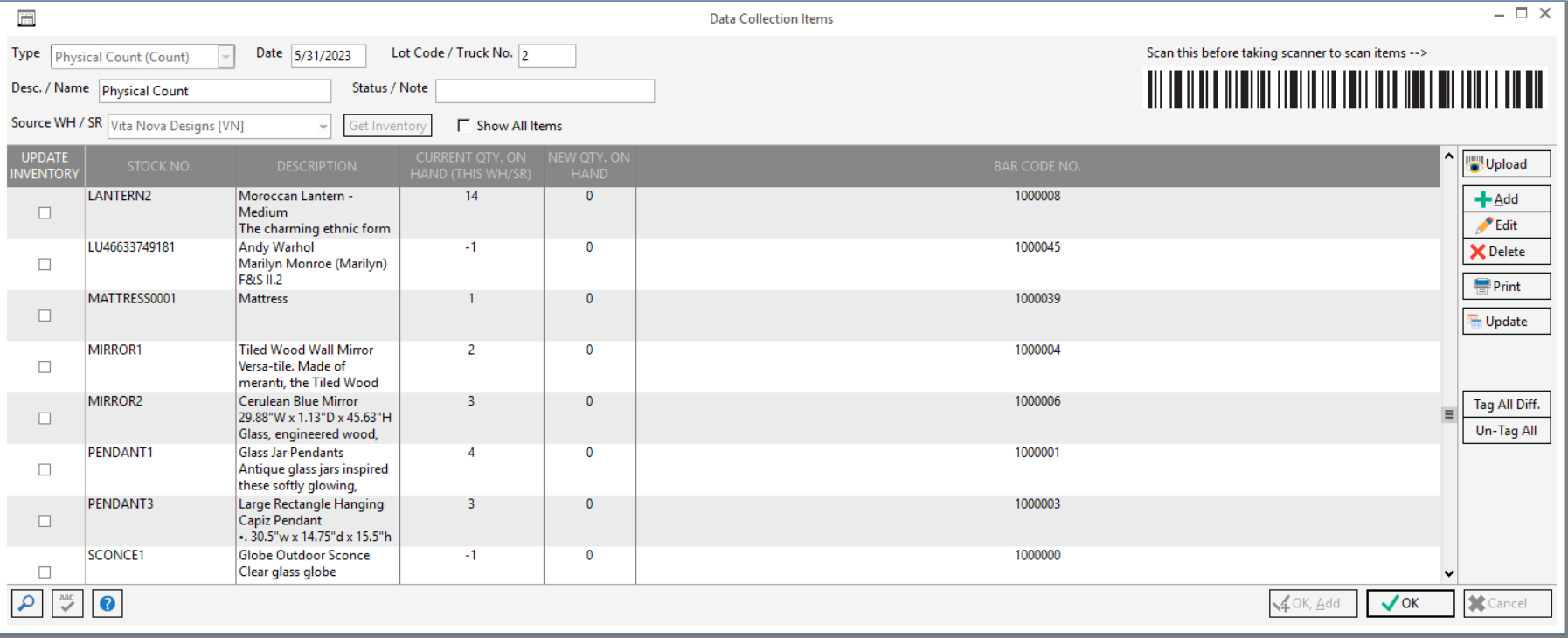

Inventory counts will be populated based on the Source Warehouse



Click Upload to prepare the transfer from the Zebra scanner

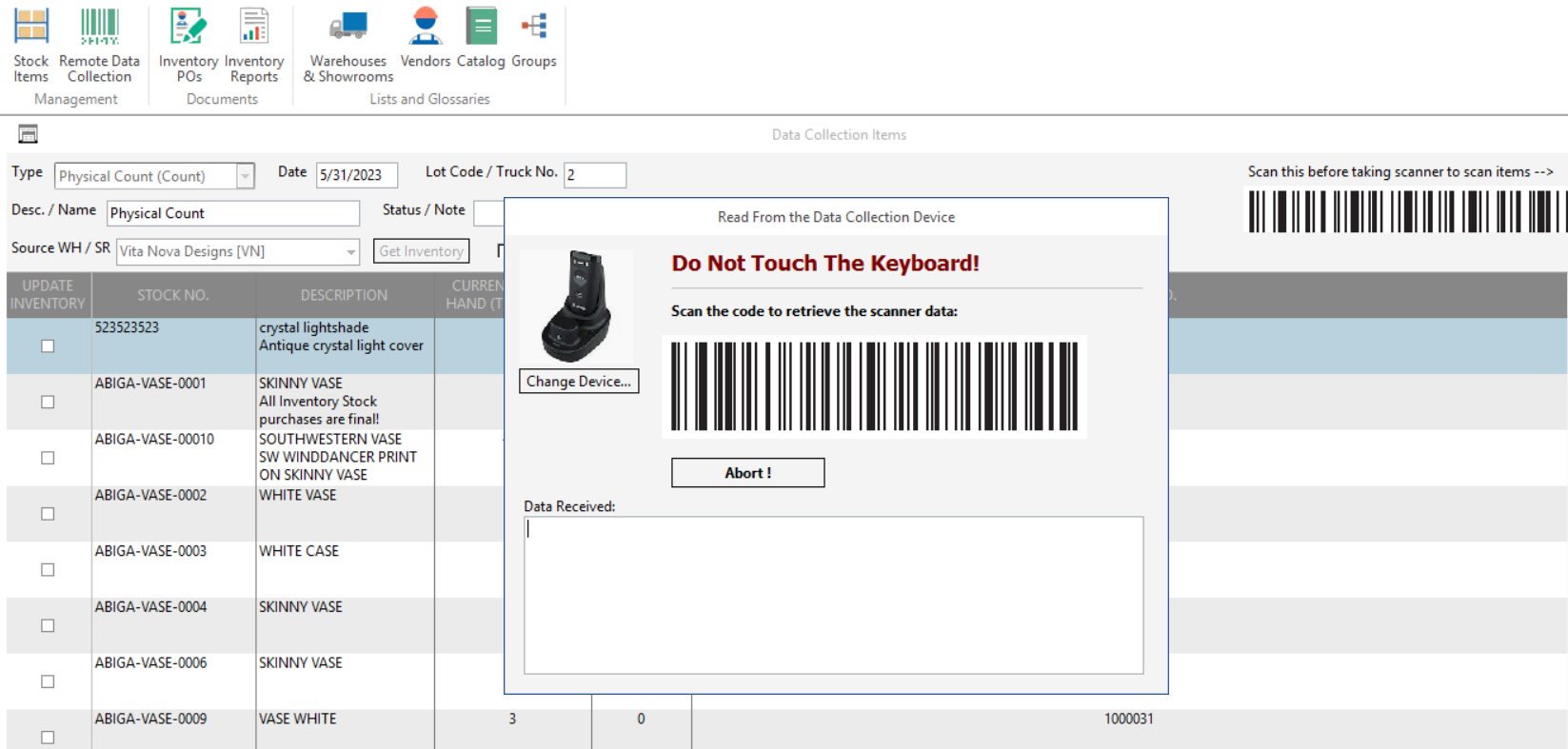

Scan the on-screen barcode to start the bluetooth transfer to the device cradle.  The device must be within bluetooth radio distance from the cradle and does not need to be inserted.



A successful upload will display the barcodes as they are transferred on-screen.

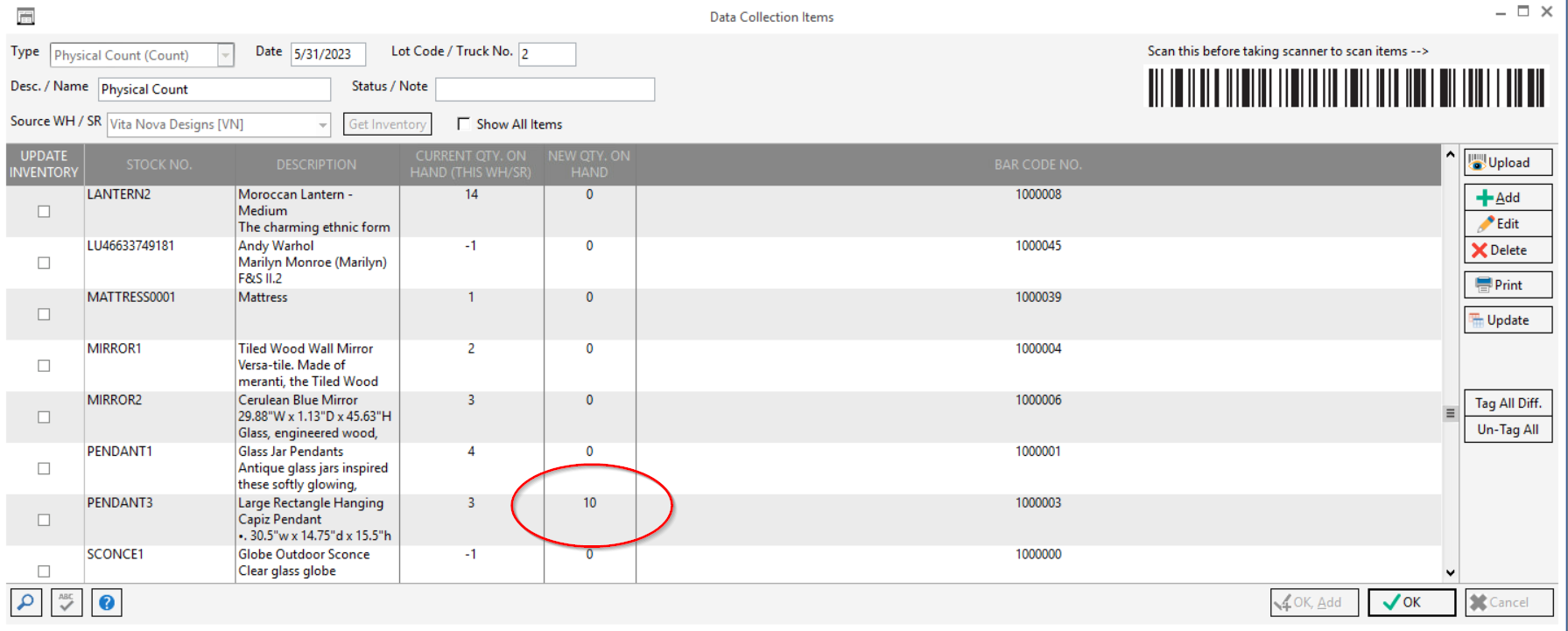

The New Quantity on Hand has been updated with our 10 scanned barcodes



The device has been cleared of any previously scanned barcodes.  To scan additional barcodes, scan to Enter Batch Mode and repeat process.
